Fiber Optic Cable Tray

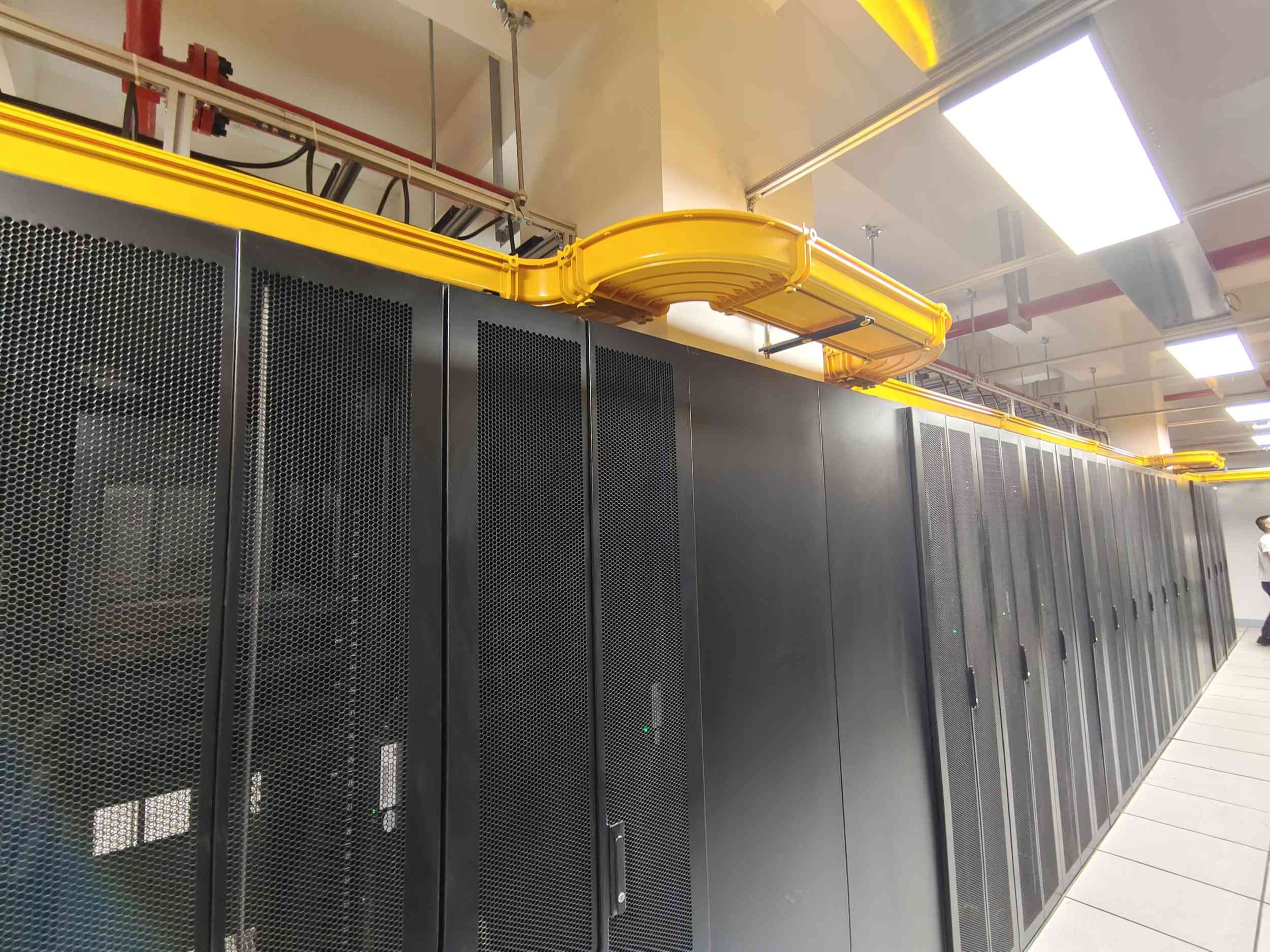

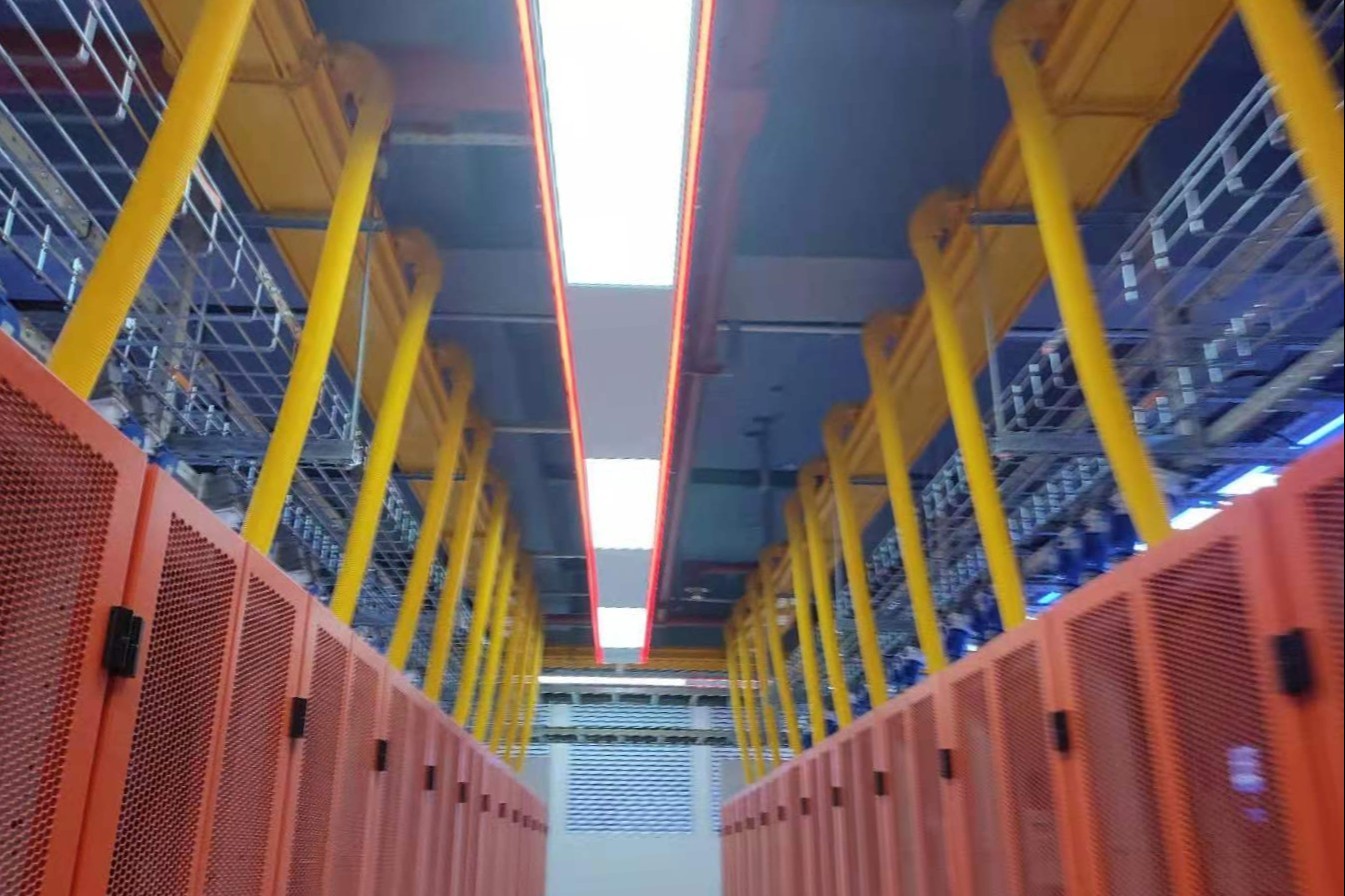

Our Fiber Cable Tray System is a comprehensive raceway solution for data center, enterprise, central office, and mobile switching center applications. Designed to route and protect fiber optic and high-performance copper cabling to and from network cabinets, distribution frames, and other terminal devices.
Product description
Our Fiber Optic Cable Tray System is a comprehensive raceway solution for data center, enterprise, central office, and mobile switching center applications. Designed to route and protect fiber optic and high-performance copper cabling to and from network cabinets, distribution frames, and other terminal devices. This system includes an extensive portfolio of channels, transitional fittings, drops and support structures that provide the flexibility and configurability to fit any installation environment. And with tool-free assembly of all channel sections and transitional fittings, the Fiber Cable Tray System reduces installation and maintenance time, which in turn reduces the total cost of ownership.
Product Parameters
Default unit : mm
Part Number | Height(H) | Width(W) | Length(L) | Material | Color |
CF120 | 100 | 120 | 2000 | PVC/ABS | YELLOW |
CF240 | 100 | 240 | 2000 | PVC/ABS | YELLOW |
CF300 | 100 | 300 | 2000 | PVC/ABS | YELLOW |
CF360 | 100 | 360 | 2000 | PVC/ABS | YELLOW |
Product Features
Fiber cable trays are designed to protect and route fiber optic patch cords, multi-fiber cable assemblies, and intrafacility fiber cable (IFC) to and from fiber splice enclosures, fiber distribution frames and fiber optic terminal devices. Fiber cable trays offer ideal solutions for optical raceway requirements and applications requiring an elegant appearance and easy maintenance.
Features:
1. The closed design protects the fiber optic cables from damage.
2. Fiber ducts are made from flame-retardant plastic that has a smooth surface and good appearance.
3. Offers excellent bend radius control and ensures fiber radius>=40mm.
4. Movable cable exit kits can be used to flexibly meet changing cabling demands in data centers.
5. Different kinds of installation methods are available, such as ceiling mounting, cabinet top supporting or connecting with other cable trays.
6. The PVC and ABS materials used to make fiber ducts have a flame retardant rating
of FV-O.
Accessories
The optical raceway system revolutionized the protection and routing of fiber. The preferred choice in central offices, data centers and mobile switching centers, our fiber cable ducting raceway offers increased flexibility and reduced installation time while maintaining the proper fiber bend radius. The fiber cable ducting raceway can be easily customized and designed for your facility’s unique needs with the assistance of the most extensive suite of tools and support in the market.
 | Name: 45° Horizontal Elbow |  | Name: 45° Horizontal Elbow Apply to: 45° Corner Connection |
 | Name: Connector Apply to: Connect straight sections, etc. |  | Name: 90° Horizontal Elbow Apply to: 90° Corner Connection |
 | Name: Horizontal Tee Apply to: Connect Horizontal Tee |  | Name: Horizontal Cross Apply to: Connect Horizontal Cross |
 | Name: 45° Internal Riser Apply to: Raises or lowers cable tray elevation, used in combination with 45° external riser |  | Name: 45° External Riser Apply to: Raises or lowers cable tray elevation, used in combination with 45° internal riser |
 | Name: Reducer Apply to: Connect Horizontal Tee |  | Name: Universal Tee Apply to: Side Opening Connection |
 | Name: Trumpet Apply to: Connection to straight section or large flex tube drop for cable drop-out |  | Name: End Cap Apply to: Close the ends |
Company Profile
Certificate
With full cetrificates such as CE, UL and CUL, the quality of our products are promised.
Packing
Double layers film wrapped and with four corners card boar wrapped (For stainless steel tray ande LCL shipping.
FAQ
Q: Is it all right to make customer's own brand name?
A:Yeah. Actually we have rich experience in OEM.
Q:Can you do the design for us?
A:Sure can we. There are a variety of technicists and engineers support us.
Q:How can I get a sample to check your quality?
A:Samples are presented free in our company and the only price you will pay is shipping.
Q:What about the lead time for mass production?
A:Regular sizes are available in stock; We will prepare products as soon as possible in accordance to your need.
Q:What's your payment term?
A:"30% T/T in advance 70% T/T after received the copy of BL.
L/C, D/P, D/A, Money Gram, Credit Card, PayPal, Western Union, Cash, Escrow."
Q:How soon we can get email response from your team?
A:Within 10 minutes.
Q:If we have some other product requirements that your page don't include, can you help to supply?
A:We will contact relavant staff, and try to solve this problem together.
Q:"Does your product have warranty service? How long is the warranty period?"
A:Our guarantee time is 10 years.
Q:What quality certifications do you have?
A:We have UL, CUL, CE, E90, ROHS etc.
